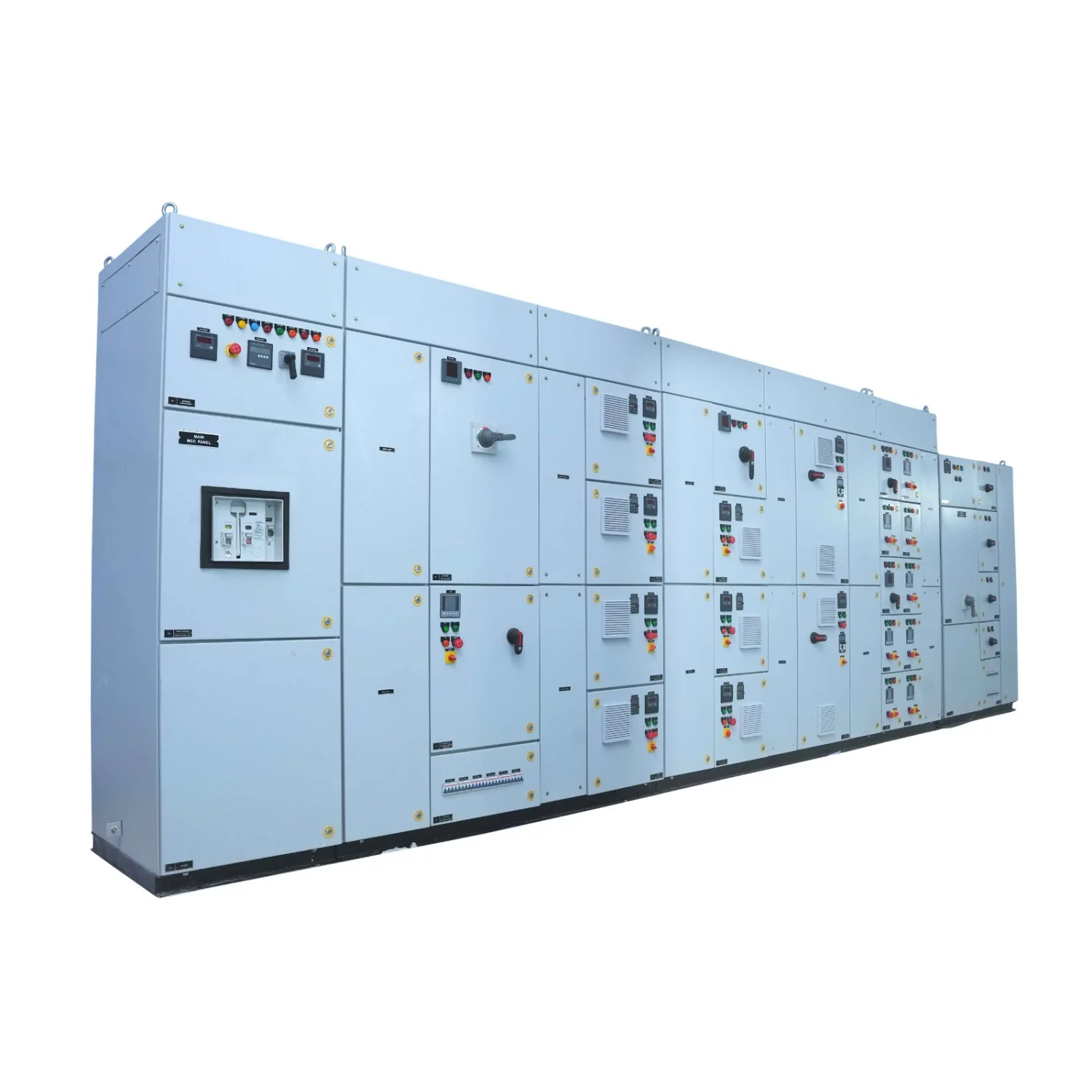

MCC Panel
MCC Panel Details
When operational continuity matters and every motor must respond exactly as intended, the design of your control system becomes critical. We manufacture MCC Panels that are built to support smooth, dependable motor operations in demanding industrial environments. Each Electric MCC Panel is created with a clear focus on safety, serviceability, and long-term performance, helping businesses maintain control over complex electrical loads without unnecessary risk.
Our MCC Panels are developed in compliance with IEC 61439 and Type Tested Assemblies standards, ensuring proven electrical integrity and verified performance under real operating conditions. Attention is given to component selection, thermal management, fault containment, and structured wiring so the system remains stable even during frequent switching or load variations. As an MCC Panel manufacturer in Ahmedabad, we follow disciplined engineering practices that translate into panels you can trust on the shop floor.
These panels are commonly used to control motors for pumps, blowers, compressors, conveyors, and other critical equipment across manufacturing and process industries. Each MCC Panel is configured to simplify operation and maintenance while supporting reliable motor protection and efficient power distribution. We also offer customization to align feeder layouts, protection schemes, and control logic with specific plant requirements and future expansion plans.
Our production facility is equipped for precision assembly and thorough testing, allowing us to deliver consistent quality from project to project. As an MCC Panel manufacturer in India, we prioritize build accuracy, documentation clarity, and final inspection before dispatch
Technical Specification:
Particular | Specification |
Type | MCC Panel – Full Drawn |
Rated Insulation Voltage | 660V 50 HZ |
Rated Operated Voltage | 415 V |
Rated Operated Frequency | 50 HZ |
Rated Current | Main Horizontal Busbar 400A To 3000A, Vertical Riser 600A |
Short Circuit Strength | 50 KA RMS For 1sec With 1 Sec With A Peak Current Of 105KA |
Ambient Temperature | Design Ambient Temperature. Standard 40°C Operated 45°C & 50°C |
Protection Grade | IP 52, IP 54 As IS 13947 |
Panel Size | As Per The Specification Vary |
If you are planning a new installation or upgrading an existing motor control system, we are ready to assist. Reach out today to discuss your application, request a detailed quotation, or get expert guidance on the right MCC Panel solution for your business.
